05701-A-0511 HONEYWELL DCS DC Input Module

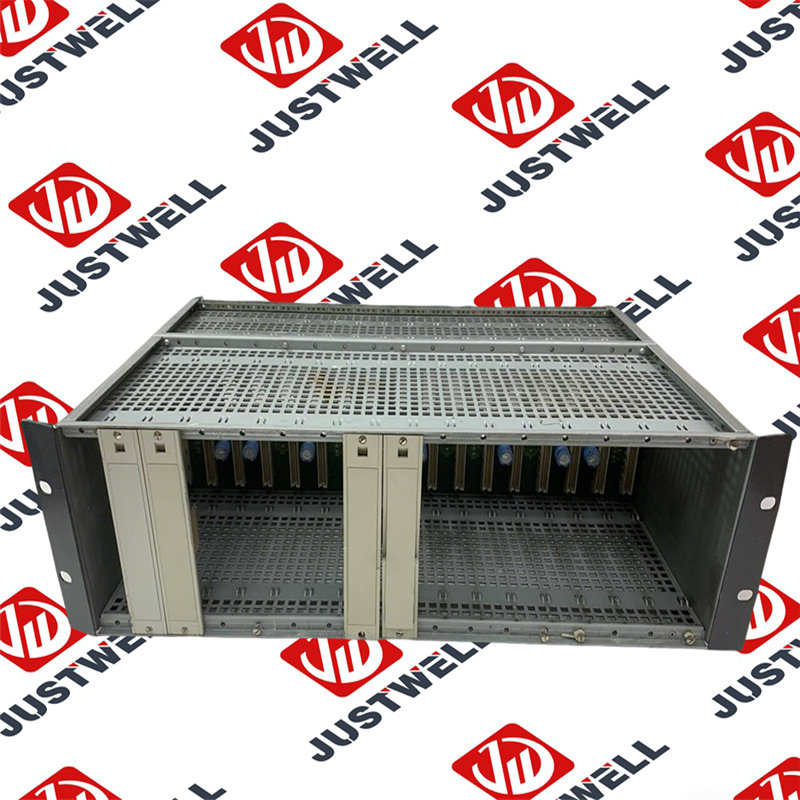

Description 05701-A-0511 HONEYWELL DCS DC Input Module Product Dimensions： Product Description (Detailed Explanation) The 05701-A-0511 acts as the “intelligence” for an individual gas detection channel within a System 57 rack. It provides the necessary constant current drive to a catalytic bead sensor and processes the resulting mV signal. The card features a dedicated 4-digit LCD screen and a multi-color LED bar graph on its front panel, providing instantaneous readings of gas concentrations (typically in %LEL – Lower Explosive Limit). It includes three levels of alarm relays (A1, A2, A3) and a fault relay, allowing it to trigger sirens, beacons, or ventilation systems automatically when hazardous gas levels are detected. Product Parameters (Technical Specifications) Parameter Category Specification Model 05701-A-0511 Sensor Compatibility Catalytic Bead (Pellistor) Sensors Input Signal 3-wire Bridge (mV) Output Signal 4-20mA (Isolated or Non-isolated depending on configuration) Power Consumption Approximately 3.5W Display 4-digit LCD and 10-segment LED Bar Graph Alarms 3 User-programmable levels 1 Fault alarm Relay Contacts SPDT (Single Pole Double Throw) rated at 5A/250VAC Operating Temp. -5°C to 55°C Mounting Standard System 57 Rack (3U High) Product Advantages (Key Benefits) Independent Operation: Each card operates independently within the rack. A failure in one channel does not affect the safety or monitoring capabilities of other gas channels. Clear Visualization: The combination of a digital LCD for precise measurement and an analog bar graph for “at-a-glance” status makes it highly user-friendly for operators. Highly Configurable: Users can set alarm thresholds, latching or non-latching relay modes, and time delays directly via the Engineering Card or software. Rugged Reliability: The System 57 is a globally recognized platform with decades of proven performance in the most extreme industrial environments. Maintenance Friendly: Cards are hot-swappable (with caution), and the front panel “Inhibit” mode prevents accidental alarms during sensor calibration. Precautions (Important Notes) Bridge Balancing: During initial installation or when replacing a sensor, the bridge must be balanced using the “Zero” and “Span” potentiometers to ensure accurate readings. Current Settings: Catalytic sensors require specific drive currents (e.g., 200mA). Ensure the card is correctly set for the specific sensor model to prevent burning out the pellistor element. Rack Grounding: Ensure the System 57 rack is properly earthed to prevent electrical noise from interfering with the sensitive mV signals from the gas sensors. Explosion Proofing: While the card sits in a safe area (control room), the sensor is usually in a hazardous area. Always use appropriate Zener barriers or galvanic isolators if the installation requires it. Product Applications (Typical Use Cases) Oil & Gas Platforms: Monitoring for methane or hydrocarbon leaks in turbine enclosures or compressor rooms. Chemical Plants: Detecting combustible vapors near storage tanks and processing units. Wastewater Treatment: Monitoring for explosive methane buildup in digester areas and pumping stations. Battery Storage Rooms: Detecting hydrogen gas accumulation during charging cycles. Marine & Offshore: Providing fire and gas (F&G) safety monitoring in engine rooms and cargo holds. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： HAMAMATSU MVS-7000 Honeywell 51402645-200 Honeywell 51309204-175 Honeywell 51403776-100 Honeywell 51304465-100 Honeywell MC-PAOY22 Honeywell 51304493-250 Honeywell TC-ODK161 Honeywell 51304685-150 Honeywell 900P01-0001 Honeywell 51304453-150 Honeywell RM7838C1004 Honeywell 51305072-600 Honeywell TC-FPDXX2 Honeywell 51304511-100 Honeywell TC-PRR021 HONEYWELL 51304453-100 Honeywell 51195156-300 HONEYWELL 51304644-125 Honeywell 51400700-100 HONEYWELL 51304518-150 Honeywell 51401286-100 HONEYWELL 51304362-300 Honeywell J-DIM00 HONEYWELL 51304672-150 Honeywell J-MHM10 HONEYWELL 51304650-100 Honeywell J-MSC10 HONEYWELL 51304487-100 Honeywell 51195066-100 /HF-75632-F HONEYWELL 51304754-150 Honeywell C7027A 1049 HONEYWELL CC-PAIM01 Honeywell 51402573-150 HONEYWELL CC-PAIH01 Honeywell DC1030CR-101000-E HONEYWELL CC-PAOH01 Honeywell XC5010C HONEYWELL CC-TAOX01 Honeywell 51401437-301 HONEYWELL CC-TAIX01 Honeywell TC-LLMUX2 HONEYWELL CC-TDOB01 Honeywell FF-SB12E04K-S2 HONEYWELL CC-TDIL01 Honeywell FF-SB12R04K-S2 HONEYWELL MC-TAMR04 Honeywell TK-PRR021 HONEYWELL HONEYWELL10024/I/I Honeywell 10006/2/1 HONEYWELL 51410070-175 Honeywell DC120211101000 HONEYWELL CC-PAON01 Honeywell 51305072-100 Honeywell FF-SB14E064-S2 Honeywell 51305072-200 Honeywell TC-PRS021 Honeywell 51305072-300 Honeywell TC-CCN014 Honeywell 621-0021R Honeywell 51197593 Honeywell 620-3030 Honeywell TC-FPCXX2 Honeywell FDC220/C7027A. 1049 Honeywell TC-PCIC01K Honeywell 04973-X01-333-20-00-000-000 Honeywell TC-TCXBNC Honeywell 946 A4V 2D 2C0 380E Honeywell DC1040-CR701000-E Honeywell 51404223-001 Honeywell KSW24 Honeywell 51404203-002 Honeywell LSQA6B134 Honeywell IPC 620-15 Honeywell TK-PRS021 Honeywell 946-A4V-2D-2C0-380E Honeywell TK-CCR014 Honeywell 621-3560 Honeywell TK-IOLI01 Honeywell MU-TAIH14 Honeywell 621-0010-ARC Honeywell MU-TAOY22 Honeywell ML984 Honeywell XCL5010 Honeywell 51304337-150 Honeywell LS2D4L Honeywell TK-FTEB01 Honeywell ECEA1616R24 Honeywell 620-0083C Honeywell EC7830A1066 Honeywell 51196694-300/U1 Honeywell EC7890B1010 Honeywell 621-0020RC Honeywell LSYAC1E Honeywell C7012A1186 Honeywell FC-SDI-1624 Honeywell TC-RPCXX1 Honeywell FC-TSDI-1624 Honeywell TC-IAH161 Honeywell TC-OAV081 Honeywell 51402645-200 Honeywell 80363972-150
