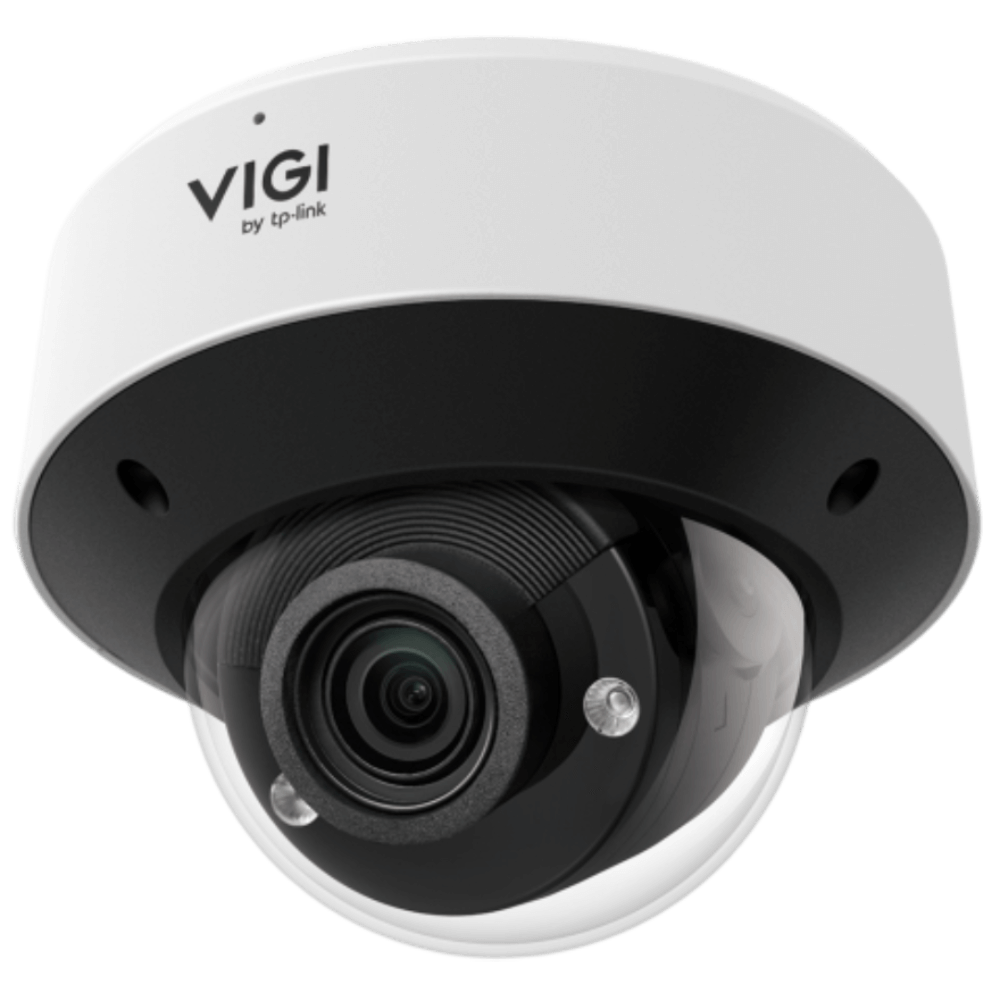

Tp-Link InSight S245ZI 4MP Motorized Varifocal Dome IP Camera

Tp-Link InSight S245ZI 4MP Motorized Varifocal Dome IP Camera Specifications Camera Product Model – InSight S245ZI Image Sensor – 1/2.9” Progressive Scan CMOS Shutter Speed – 1/3 to 1/10000 s Slow Shutter – Ye s Min. Illumination – 0.005 Lux; 0 Lux with IR Light Day/Night Mechanism – IR Cut Filter Day/Night Switch – Unified/ Scheduled/ Auto Lens Type – Motorized Varifocal Lens Focal Length – 2.7-13.5 mm (5X Optical Zoom) Aperture – F1.6 FOV 2.7-13.5 mm: Horizontal FOV: 29.6°-102.0° Vertical FOV: 16.8°-53.8° Diagonal FOV: 34.1°-122.8° Lens Mount – φ14 DORI Distance 2.7-13.5 mm: Detect: 62-200 m (203-656 ft) Observe: 27-84 m (89-276 ft) Recognize: 13-40 m (43-131 ft) Identify: 7-21 m (23-69 ft) Angle Adjustment (Manual) Range – Pan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344° Illuminator IR LED Quantity: 4 Range: 60m (197ft) Wavelength: 850nm Illuminator On/Off Control – Auto/Scheduled/Always on/Always off Video Max. Resolution – 2688 x 1520 Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240, Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control – CBR, VBR Video Compression Main Stream: H.265 /H.265/H.264 /H.264 Sub-Stream: H.265/H.264 H.264 Type – High Profile H.264 – Main Stream Supported H.265 Type – Main Profile H.265 – Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 1 Mbps Image Image Settings Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Image Enhancement – BLC/3D DNR/HLC/SmartIR Wide Dynamic Range – 120 dB SNR – ≥ 52 dB Image Parameters Switch – Ye s Privacy Mask – Up to 4 Masks ROI – 1 Region OSD Setting – Ye s Audio Audio Communication – Two-Way Audio Audio Input – Ye s Audio Output – Ye s Audio Compression – Ye s Audio Sampling Rate – 8KHz Environment Noise Filtering – Ye s Audio Bit Rate – 64 Kbps (G.711 alaw) Network Protocols – TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF – Ye s API – Open Network Video Interface (Profile S/T/G) Simultaneous Live View – 3 Main Streams & 3 Sub-Streams Client – VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud – Ye s Security – Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Alarm and Event Management Smart Event Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection Basic Event Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login) Alarm Input Device Alarm Linkage Memory Card Video Recording Push Notifications Active Defence-Sound Alarm Email Alarm Upload to FTP Server Alarm Output Device Send to Alarm Server Interface Network Interface – 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE On-board Storage – Built-In Memory Card Slot, Support microSD Card, up to 512 GB*1 Built-in Speaker – N/A Built-in Microphone – Yes; Records Anything Going on within a 15-ft Radius of the Camera Audio – 1 Audio In, 1 Audio Out Alarm – 1 Alarm In, 1 Alarm Out Reset Button – Ye s Power – DC Power Port General Operating Temperature – -30 °C to 60 °C Storage Temperature – -40 °C to 60 °C Operating Humidity – 95% or Less (Non-Condensing) Storage Humidity – 95% or Less (Non-Condensing) Package Contents VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Power Supply 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max.12 W Protection – IP67 Weatherproof, IK10 Vandal Proof Material – Metal Net Weight – 0.775 Kg Product Dimensions – Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm) Certifications – CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 Available Model InSight S245ZI
