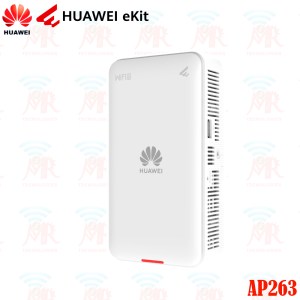

AP263 – WI-FI 6 WALL ACCESS POINT HUAWEI

AP263 – Punto de Acceso Wi-Fi 6 2.975 Gbps MU-MIMO 2×2:2 (2.4GHz y 5GHz) / 1 Puerto 10/100/1000 Mbps (PoE In) / 1 Puerto 10/100/1000 Mbps LAN Puerto USB Smart Antenna 20% más cobertura   Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Installation Type Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal) Optimal Signal Distance (m) 13 Max Number of Access Users 256 Recommended Number of Access Users 64 Device Rate 2.975 Gbps Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing Radio number 2 Maximum channel bandwidth [MHz] Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 Maximum power consumption [W] 12 Input voltage range [V] 12±10% PoE: 802.3at/af Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) Weight without packaging [kg(lb)] 0.320 kg (0.705 lb) Weight with packaging [kg(lb)] 0.542 kg (1.195 lb) Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Radio interface Built-in smart antennas Antenna gain 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi Operating frequency band 2.4GHz,5GHz
