HET Typhoon EDF 1W-30 with 6904 Fan Unit

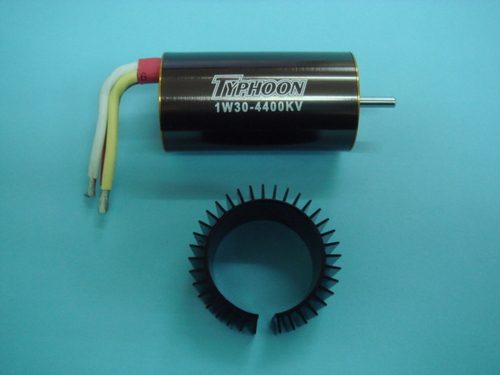

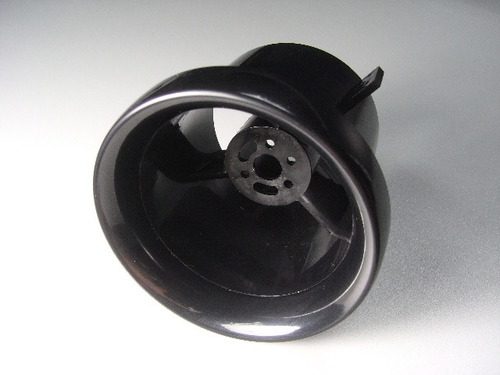

Description The 1W-30 4400kv motor comes pre-installed at the factory in a 70mm 6904 HET fan unit.  The 6904 1W-30 combo comes pre-installed and dynamically balanced from the factory.  The motor features 3.5mm gilt connectors all ready installed.  Recommended to operate on a 3-4S lipo battery. BUILDERS NOTE: REFER TO THE “ELECTRIC SETUP GUIDE” ON THE HOME PAGE TO HELP DETERMINE THE PROPER SET UP FOR FAN, ESC, MOTOR AND BATTERY. SPECIFICATIONS: Diameter: 28 mm Length: 53 mm Shaft Dia.: 4 mm Li-Po: 3-4S Weight: 130 grams No load current(lo): 5.5 Internal resistance: 4.5 KV: 4400 No. of poles: 6 Max Current: 120 A Max efficiency: 87% Power Nominal: 1400Watts (on 4S with 6904 EDF) It is not recommended to use more than 4S lipo due to burning up the motor.  35C lipo cells or higher are recommended. Recommended ESC setup: Cutoff Voltage: Auto Current Limiting: Standard Brake Type: Disable Timing Advance: Middle 18 deg Cutoff Type: Hard Start Type: Fast Start Governor Mode: Auto PWM: 16K Comes with Heat Sink WARNING: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels. Insurance Note:  Fan Jets USA recommends the purchase of shipping insurance. If insurance is not purchased and the package is lost or damaged, the most that can be claimed with the USPS and awarded to the purchaser (shipment recipient) is $50.00.  Fan Jets USA is not responsible for reimbursing the purchaser the difference of an order of any amount.  Shipping charges are not included in an insurance claim per USPS guidelines. CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
