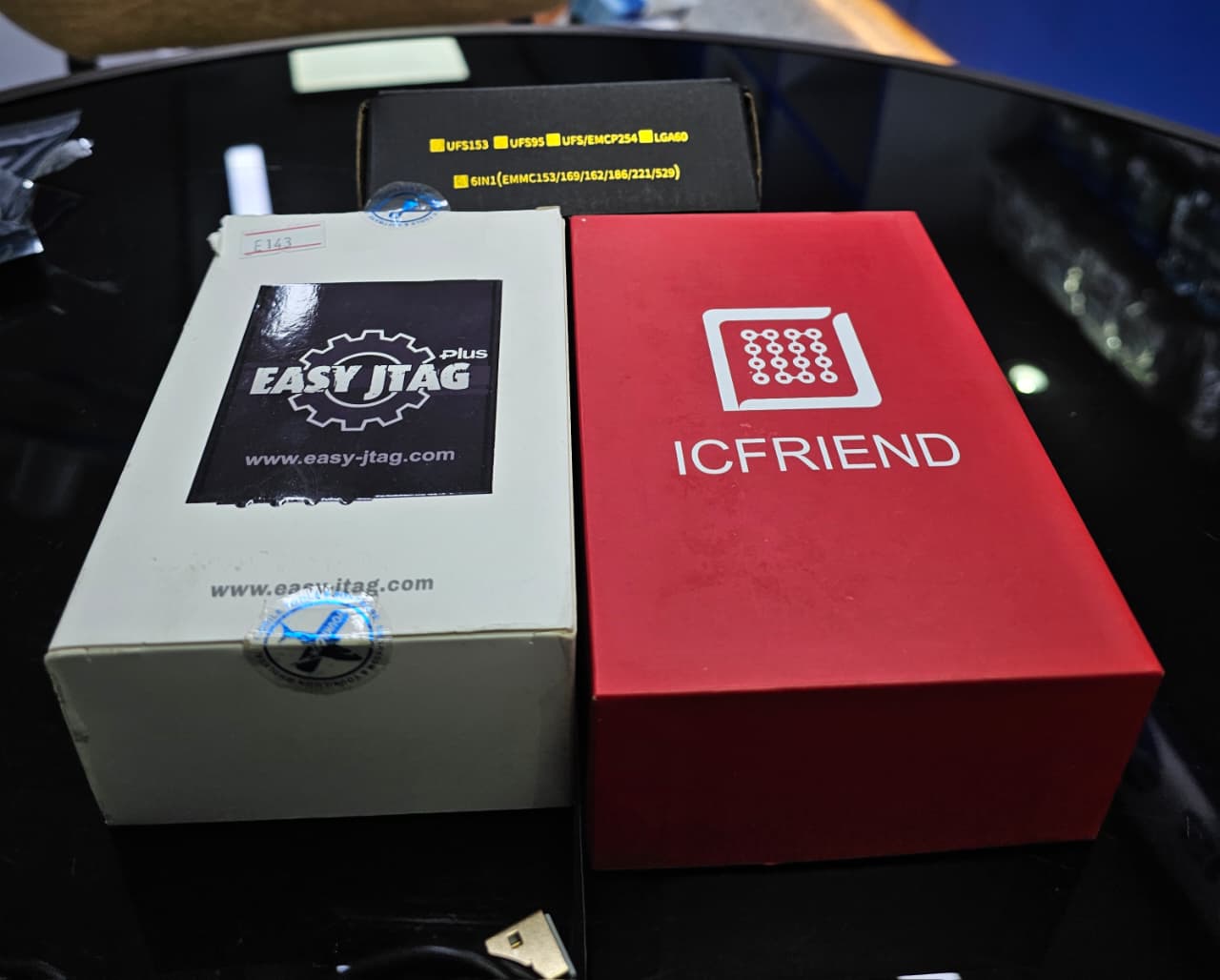

EASY JTAG PLUS BOX BLACK EDITION

Z3x Easy Jtag Plus Box – Full Version With eMMC Socket, which boasts some MAJOR hardware improvements and Features including One click device repair, Boot repair, Data recovery, eMMC firmware repair, Partition management, eMMC service operations, SPI memory programming. This Upgraded PLUS version features ultra-fast data transfer, has the possibility of increasing functionality in the future: hardware of the new box is ready to support new protocols like UFS* and NAND*. Box Features :- One click device repair Boot repair Data recovery eMMC firmware repair Partition management eMMC service operations SPI memory programming Socket Features :- Combining the top quality materials with the best engineering and elegantly designed hardware for the powerful eMMC Socket. Made from the high-quality materials Over 10K cycles of lifetime performance in your service centre Wide range of eMMC IC supported by BGA153/169, BGA162/186, BGA221, BGA529 High-speed up to 30 MB per second over 8-bit bus. EMI resistant design, low noise components Integrated power logic. The additional power source is no more need Surge protection – smart fuse driven (0.5A threshold) Software Features :- DUMP AND PINOUTS DATABASE Free access to large dump and pinouts database and constantly updated software tools EASY JTAG TOOL The main application allowing you to use most of the product features. It’s the most powerful tool of all EASY JTAG PLUS TOOL Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery EASY JTAG SPI FLASHER Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers, e.t.c. EASY JTAG SINGLE PACKAGE REPAIR Create user customized repair packages. This is partition layout, pinout, eMMC pre-config and instructions EASY JTAG API Access to most useful box functionality to create your own decisions Main benefits of new Z3x Easy Jtag Plus Box :- Updated CPU AT SAM3X8E vs LPC1768 in the old box. Updated FPGA SPARTAN6 vs SPARTAN3 in the old box Updated Power Logic – Full Digital PWM with ADC control. MicroUSB Connector if additional power required. VCC and VCCQ overload protection. Updated host interface: USB 2.0 Device/Mini Host: 480 Mbps Integrated ISP engine: Z3X High Power Pro Engine ISP Support 1 and 4-bit connection now ** Added eMMC 8-bit high speed interface up to 48Mhz Integrated NAND engine: NFC with 4 Kbyte RAM buffer and ECC Integrated M-PHY interface. Integrated SPI/I2C engine: up to 65 MHz for HSMCI and SPI clock lines Integrated Self Test Core that exclude 90% faults in production. Integrated CCID Card Reader for Z3X Software Use What you get with new hardware :- Box to Host PC speed increase up to 35MB/sec JTAG Interface speed increase 20% eMMC ISP Speed increase up to 4MB/sec eMMC 8 Bit Speed up to 26MB/sec Compatibility with 99.9 host PC systems and OSes Compatibility with old Easy JTAG G1 ISP adapters ( 1bit ) Adapter-less ISP ( all stuff inside the box ) Compatibility with all market popular eMMC sockets ( 8 bit ) IC Friend Emmc 13in1 Features :- 13 in 1 EMMC Tool BGA Socket Support for BGA 529 168 100 136 254 221 168 153 186 162 Can disassemble, clear, change pin at any time, can use for a long time, can work all box to read/write full flash Timesaving but easy to operate, Stable and efficient Intelligent: just read it, operate the programming, reading the chip ROM1 USERDATA with just a key. Speed: eMMC which read-write speed could be 33MB per second. Its speed is related to the eMMC version. Simple: it is no need to choose the font type. The interface is simple and easy to use. which support all the chip package of eMMC Reliable: special machine design of the third generation eMMC, special power supply, independent overcurrent protection Z3x Easy JTAG Plus Box Content :- 1x Easy JTAG Plus Box Main Interface Hardware V2.1 Z3X Smart Card with Easy JTAG Plus Activation 3x ISP Adapter Jtag Rev 2.1 1-Bit ISP Rev 2.1 4-Bit ISP Rev 2.1 1x USB A to B Cable The new ICFriend 4-in-1 Adapter for Easy Jtag Plus Box will enable the user to work with newer UFS chipsets, and let you read/write data, etc. Support UFS-BGA-153 and UFS-BGA-153 (UFS 4.0) / uMCP-BGA-254 / uMCP-BGA-297, need use with Easy Jtag Plus Box Supported Chipsets:- – UFS BGA153 – UFS BGA254 – UFS BGA297 – UFS BGA153 (UFS 4.0)
