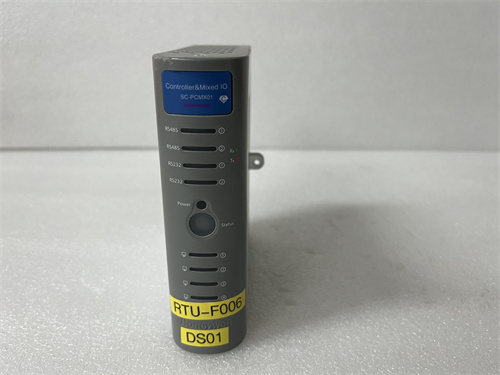

HONEYWELL SC-PCMX01 51307195-175

Description Detailed Product Description The HONEYWELL SC-PCMX01 51307195-175 is a specialized PC (Portable Computer) Multi-function Module or a communication gateway. It is a printed circuit board assembly (PCBA) designed to be installed as a plug-in card within various Honeywell system chassis, such as those used in the Experion Process Knowledge System (PKS) or older TDC and TPS systems. The core function of this module is to provide critical communication interfaces and processing power to the system. It often serves as a multi-purpose card, potentially handling tasks such as an I/O port controller, a serial communication interface for connecting legacy or third-party devices, a system load/boot device, or a diagnostic interface. The HONEYWELL SC-PCMX01 enables critical data exchange and system utilities that are essential for the operation and maintenance of the control platform. HONEYWELL SC-PCMX01 51307195-175 Technical Parameters and Characteristics Module Type: Multi-function PC Card/Communication Module. Form Factor: Printed Circuit Board Assembly (PCBA) designed for installation in a specific Honeywell system slot or chassis. Primary Functions (May Include): I/O Communication: Acts as a controller or gateway for I/O subsystems (e.g., C200, C300 I/O). Serial Communication: Provides RS-232/422/485 ports for connecting peripherals (printers, modems) or interfacing with subsystems using protocols like Modbus. System Services: Functions as a Boot/LOAD device for the controller or as a critical part of the system’s diagnostic and service network. Compatibility: Designed for specific Honeywell controller cabinets and chassis (e.g., HPMM or HPM cabinets in TPS, or certain Experion C300 controllers). The part number 51307195-175 denotes the specific assembly and revision. Processing Power: Contains a microprocessor and memory resources dedicated to its communication or control tasks. Dependencies: Requires correct backplane connections, compatible system software, and often works in tandem with other specific modules (e.g., NIMs – Network Interface Modules). HONEYWELL SC-PCMX01 51307195-175 Key Advantages and Features System Integration Enabler: The HONEYWELL SC-PCMX01 is pivotal for connecting the controller to various I/O networks and peripheral devices, forming the bridge between the control strategy and the field. Legacy System Support: Plays a vital role in maintaining and extending the life of installed Honeywell TPS or early Experion systems by providing essential communication pathways. Multi-functional Design: By consolidating several functions (I/O control, serial comms, boot services) into a single module, it simplifies the hardware architecture within the controller chassis. Honeywell Ecosystem Reliability: As a genuine Honeywell OEM component, the SC-PCMX01 51307195-175 guarantees compatibility and reliability, ensuring the deterministic performance required for process control. Critical for System Diagnostics: Often provides essential ports and functions used by service technicians for troubleshooting, loading software, and monitoring controller health. Hot-Swap Capability (Context Dependent): In many systems, these types of modules are designed to be hot-swappable, allowing for replacement without a full system shutdown, following proper procedures. Application Examples in Various Fields Oil Refinery (TPS System): Installed in an HPM (High-Performance Process Manager) cabinet, the SC-PCMX01 module acts as the LOAD/Boot device and manages communication with legacy Honeywell I/O subsystems for controlling distillation column temperatures and pressures. Chemical Plant (Experion PKS): Used within a C300 Controller chassis to provide additional serial ports for connecting a Modbus RTU network of weigh scales or analytical instruments. Power Generation: Functions as a critical communication card in a system controlling turbine sequencing, interfacing between the main controller and specialized protection devices. Pharmaceutical Manufacturing: Supports a TPS-based batch process by managing I/O communications for reactor control and providing a diagnostic interface for validation and maintenance activities. Comparison with Competing Products (Emerson, Siemens, Yokogawa) Vs. Emerson (DeltaV): Emerson uses different hardware architecture. A comparable function might be served by a DeltaV Serial Interface Card or an I/O Card in an EIOC. The HONEYWELL SC-PCMX01 is highly specific to the proprietary Honeywell /Experion hardware ecosystem. Vs. Siemens (PCS 7): Siemens systems use different hardware (e.g., ET 200M I/O with Profibus). The SC-PCMX01 has no direct equivalent but serves the same conceptual role of a controller-embedded communication processor within its native system. Vs. Yokogawa (Centum VP): Yokogawa uses dedicated communication and I/O modules (e.g., ALR121). The Honeywell module is unique to its chassis-based architecture. The key difference is that competitors’ systems are often more modular at the I/O level, whereas the SC-PCMX01 is an integral part of the controller’s internal architecture. Selection Suggestions and Important Notes Precise Compatibility Check: This is the most critical step. The HONEYWELL SC-PCMX01 51307195-175 must be verified as an exact replacement or compatible part for the specific chassis, slot, controller model (e.g., HPM, APM, C300), and system software version in use. Consult Honeywell documentation or a specialist. Function Verification: Confirm the exact role of the module in your system (Is it the primary I/O link? A boot device? A serial card?). Replacing it with an incorrect revision could cause system failure. Firmware and Software: Ensure the module’s firmware is compatible with the overall system software. A replacement may require a firmware update. Handling and ESD Precautions: As a sensitive PCBA, it must be handled with proper Electro-Static Discharge (ESD) precautions during installation. System Impact: Understand the procedure for replacing the module. Even if hot-swap is supported, it may require specific steps to deactivate a node or function gracefully. Source from Reputable Suppliers: Due to the critical nature and complexity of this proprietary component, procure the SC-PCMX01 from authorized Honeywell distributors or highly reputable automation parts specialists to avoid counterfeit or mislabeled goods. DS3800DCMC GE PLC DS3800DCRA GE DS3800DDIB GE PLC DS3800DECA GE PLC DS3800DFCD GE DS3800DFCF GE DS3800DFPF GE PLC DS3800DFXB GE Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
