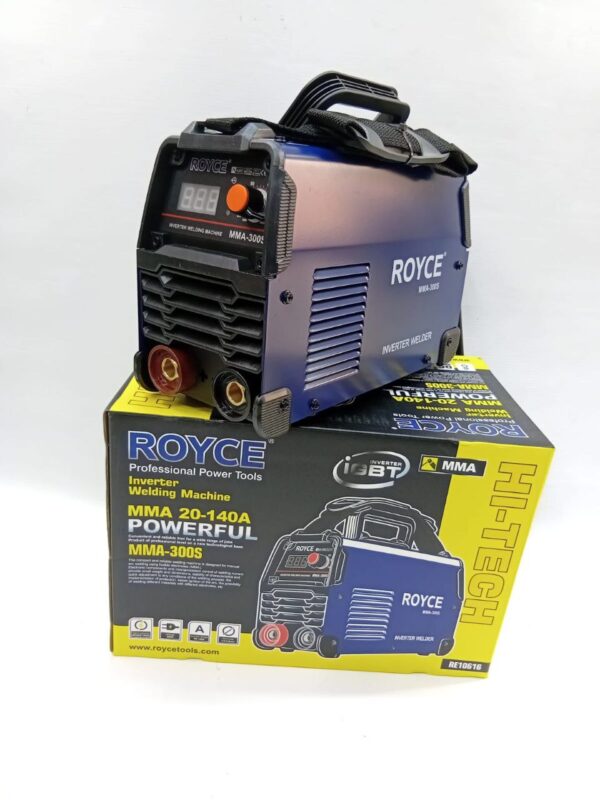

Royce inverter welding machine 300s

Key Specifications Feature Typical Specification Significance Model ARC-300S / MMA-300S Usually indicates a dedicated Stick/Arc welding machine. Technology IGBT Inverter Modern, highly efficient technology that allows the machine to be powerful yet lightweight and compact. Max Output Current $300 text{ Amps}$ High output, capable of welding thick materials and running large electrodes (up to $5 text{ mm}$ or $6 text{ mm}$ diameter). Input Voltage Usually $220 text{ V}$ / $240 text{ V}$ Single Phase Designed to run on standard household or workshop power, though high amps will require a heavy-duty breaker. Duty Cycle $approx 60%$ at $200 text{ A}$ A crucial factor. If it is $60%$ at $200 text{ A}$, it means it can weld continuously for 6 minutes out of every 10 at that current. The duty cycle at the max $300 text{ A}$ will be lower (e.g., $20% – 30%$). Processes MMA / ARC (Stick) Main function.
