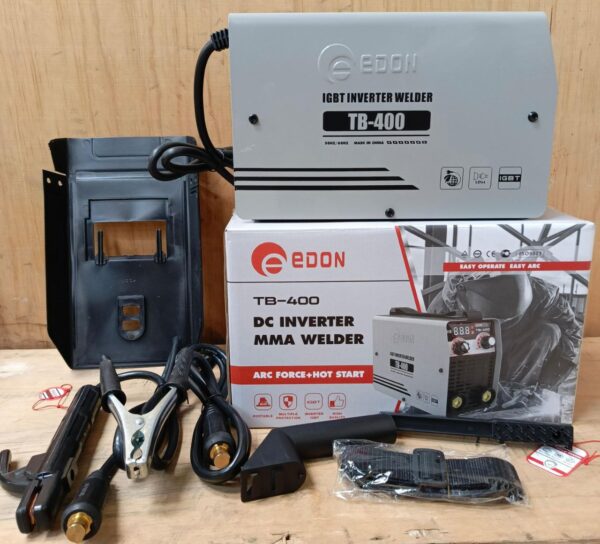

Edon TB400 inverter welding machine

Key Specifications (Edon TB400) Feature Typical Specification Notes Technology IGBT Inverter Makes the machine highly efficient, stable, and very lightweight (often $mathbf{3.5 text{ kg} text{ to } 5 text{ kg}}$). Welding Process MMA / ARC (Stick) Designed for welding with coated electrodes (rods). Input Voltage $mathbf{220 text{ V} / 240 text{ V}}$ Single Phase Runs on standard household or workshop power. Reliable Max Output $160 text{ Amps}$ (Common Maximum) Crucial Note: While the model number is “400,” the consistently reported rated output is often capped at $160 text{ A}$ (or sometimes $100 text{ A}$ in lighter versions), making it an excellent medium-duty welder. Current Range $20 text{ A}$ to $160 text{ A}$ Provides flexibility for welding thin metal up to $3/8 text{ inch}$ thick steel. Rated Duty Cycle $mathbf{60% text{ at } 160 text{ A}}$ This is a strong duty cycle, meaning it can weld continuously for 6 minutes out of every 10 minutes at a high current. Electrode Size $1.6 text{ mm}$ to $4.0 text{ mm}$ Handles the most common sizes of rods for various applications.
